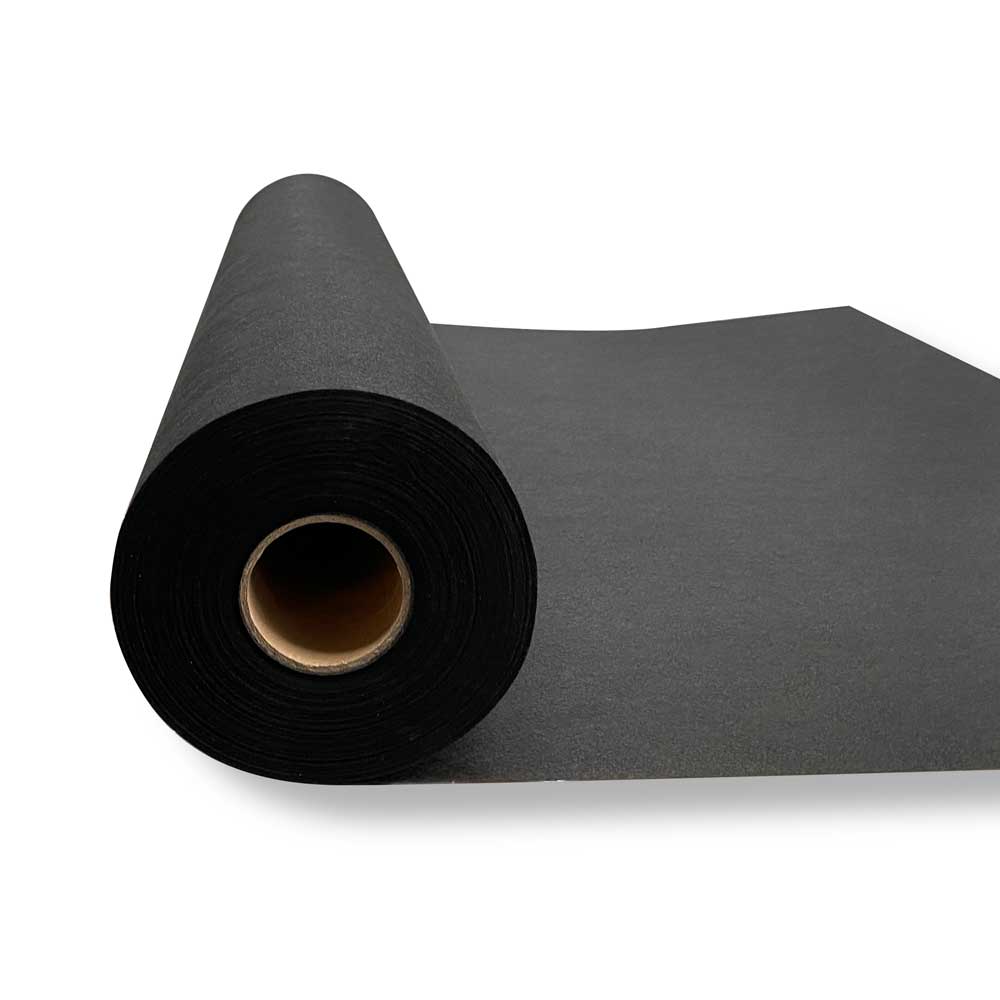

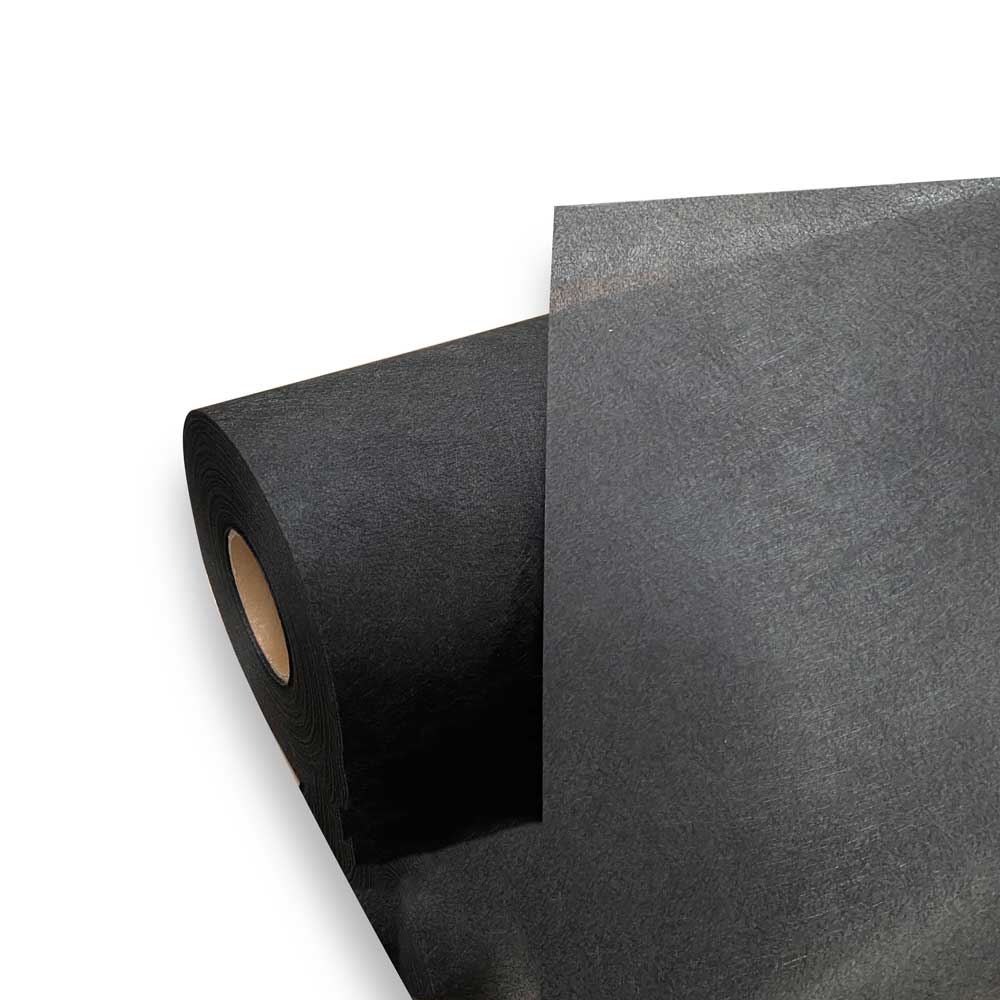

Black Glass Tissue
Price 6,875.00 บาท
Product Details
Black Glass Tissue is made from high-quality fiberglass, woven into a thin, uniform black sheet. Designed for architectural and industrial applications requiring maximum precision and safety, it is ideal as a facing material for various types of insulation.
Key Features
- Excellent Acoustic Absorption: Reduces echoes and enhances sound absorption performance when used with glass wool or rockwool insulation.
- Fire Resistance: High heat resistance and safe according to international standards. Does not act as fuel in the event of a fire.
- Prevents Fiber Shedding: Helps trap and prevent dust or insulation fibers from escaping into the air.
- Deep Black, Seamless Aesthetic: Consistent deep black color provides visual concealment when installed in visible areas, such as behind perforated metal sheets or acoustic walls in recording studios.
Size: 1.25 x 100 m
Black Glass Tissue is made from high-quality fiberglass, woven into a thin, uniform black sheet. Designed for architectural and industrial applications requiring maximum precision and safety, it is ideal as a facing material for various types of insulation.
Key Features
- Excellent Acoustic Absorption: Reduces echoes and enhances sound absorption performance when used with glass wool or rockwool insulation.
- Fire Resistance: High heat resistance and safe according to international standards. Does not act as fuel in the event of a fire.
- Prevents Fiber Shedding: Helps trap and prevent dust or insulation fibers from escaping into the air.
- Deep Black, Seamless Aesthetic: Consistent deep black color provides visual concealment when installed in visible areas, such as behind perforated metal sheets or acoustic walls in recording studios.
{%CAPTION%}
Properties Table
| Properties | BGT-60 |
|---|---|
| Y Style | Glass Fiber Resin |
| Area Weight | 60 ± 5 g/m² |
| Binder Content | 14 – 16 % |
| Tensile Strength MD | ≥110 N/50mm |
| Tensile Strength CMD | ≥50 N/50mm |
| Moisture Content |
<0.7 % |
| Oxygen Index | ≥40 % |
Product Dimensions
| Product | Size (Width x Length) |
|---|---|
| Black Glass Tissue | 1.25 x 100 m |
Applications
- Fiber Glass Tissue has non-flammable and fire-resistant properties with excellent durability, making it suitable for use with insulation in HVAC systems, roof thermal insulation, and wall sound insulation applications.
- HVAC System applications: Used to cover one side of glass wool insulation for lining air ducts to prevent fiber particles from shedding into the ductwork.
- Roof Insulation applications: Covers one side of fiber insulation to prevent fibers from falling into the building below. Installation is done with the glass tissue-covered side facing downward for aesthetic purposes.
- Sound Insulation applications: After installing insulation panels to walls, glass tissue is used to cover the insulation panels to prevent any fiber particles from shedding.

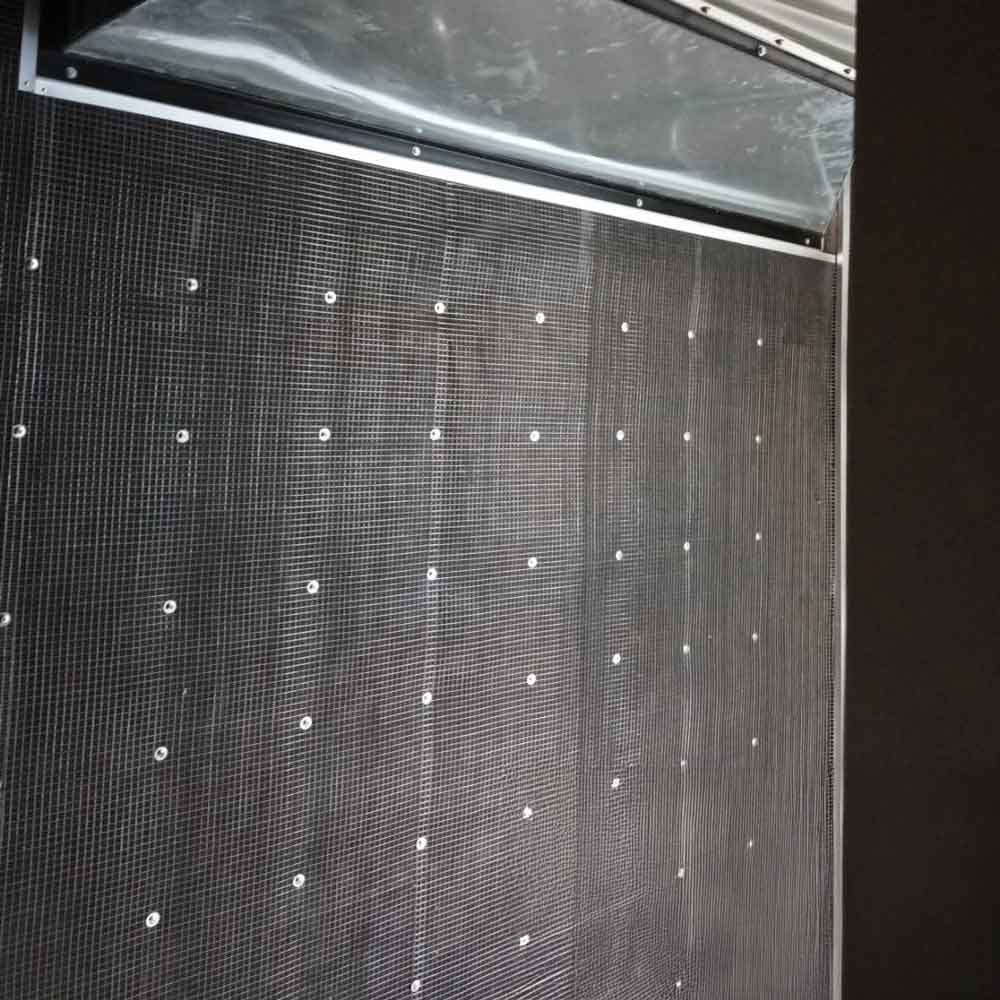

- Acoustic treatment for generator room ceilings and walls using Black Glass Tissue
